Chute flowmeter H, HS, HL

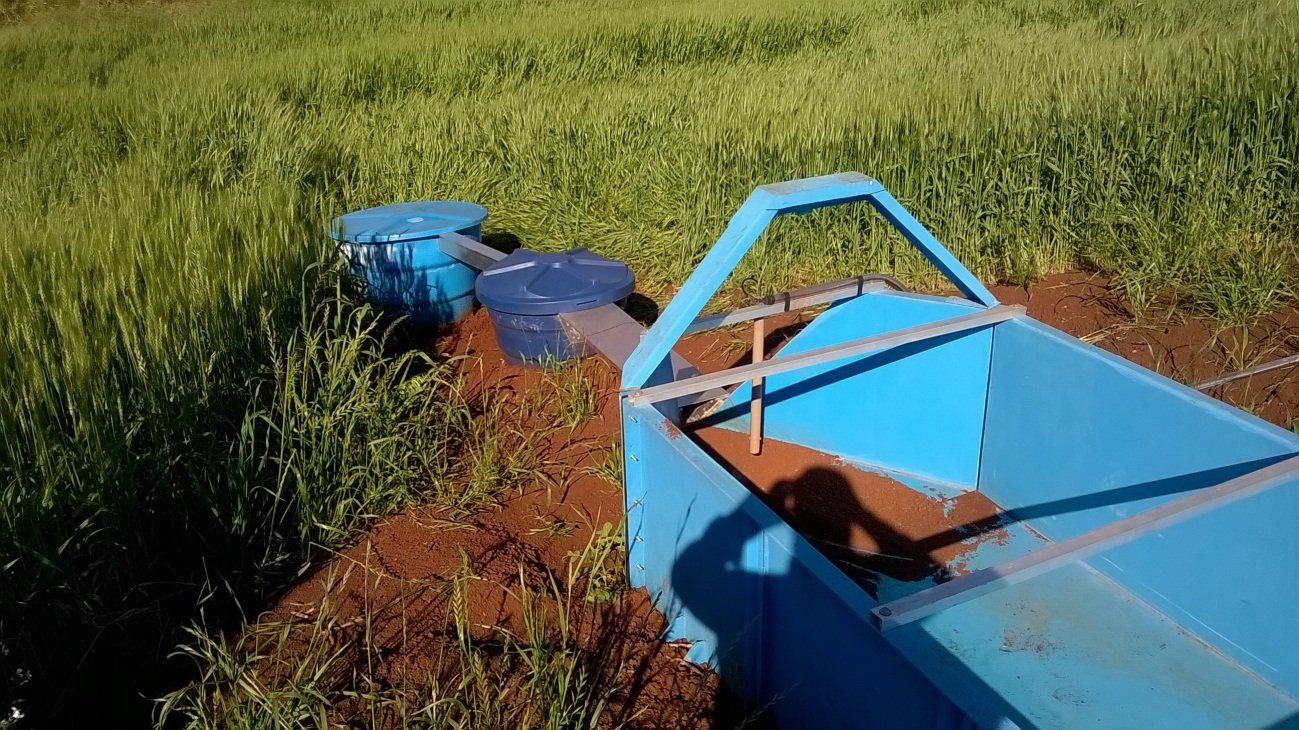

The H-channel flow meter was developed to measure the flow of small plots and micro-basins, made entirely of polyester reinforced with fiberglass.
Budget

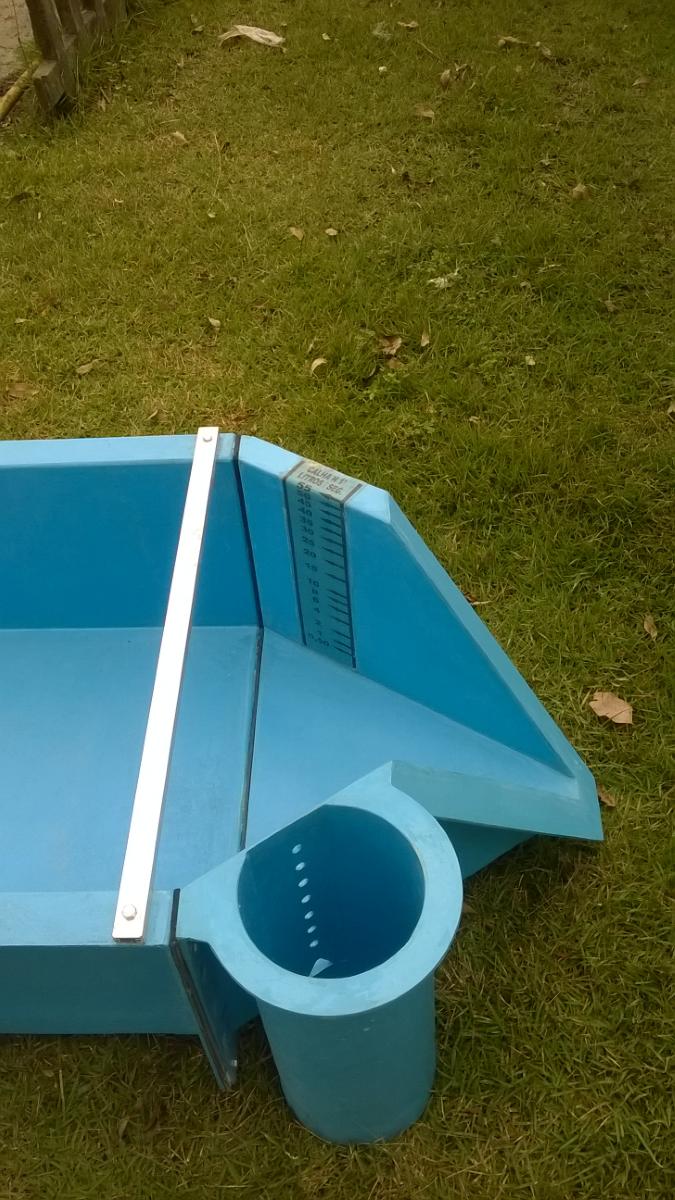

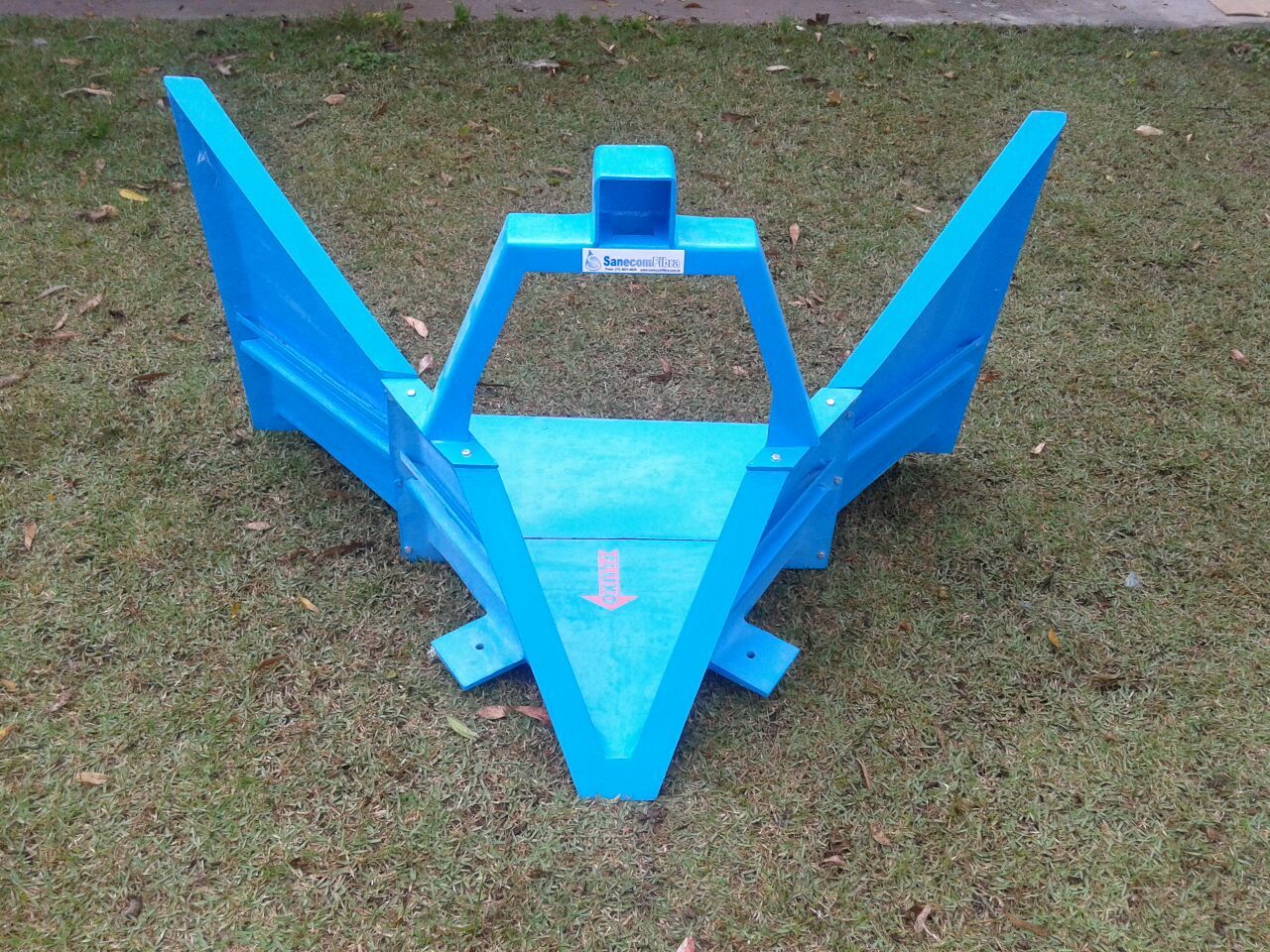

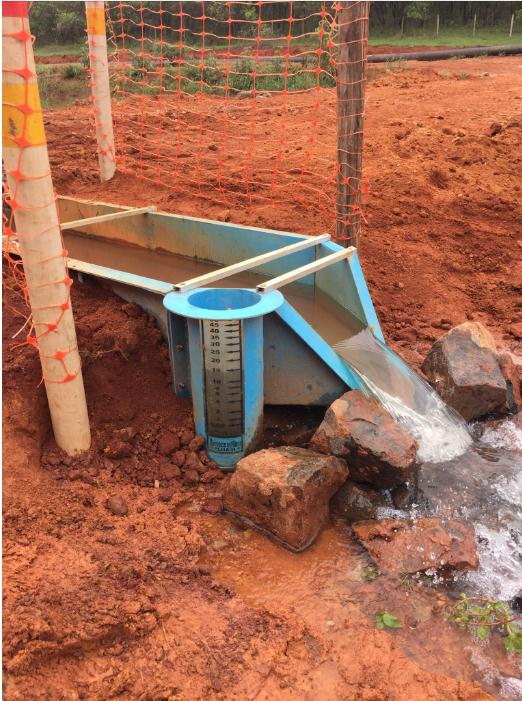

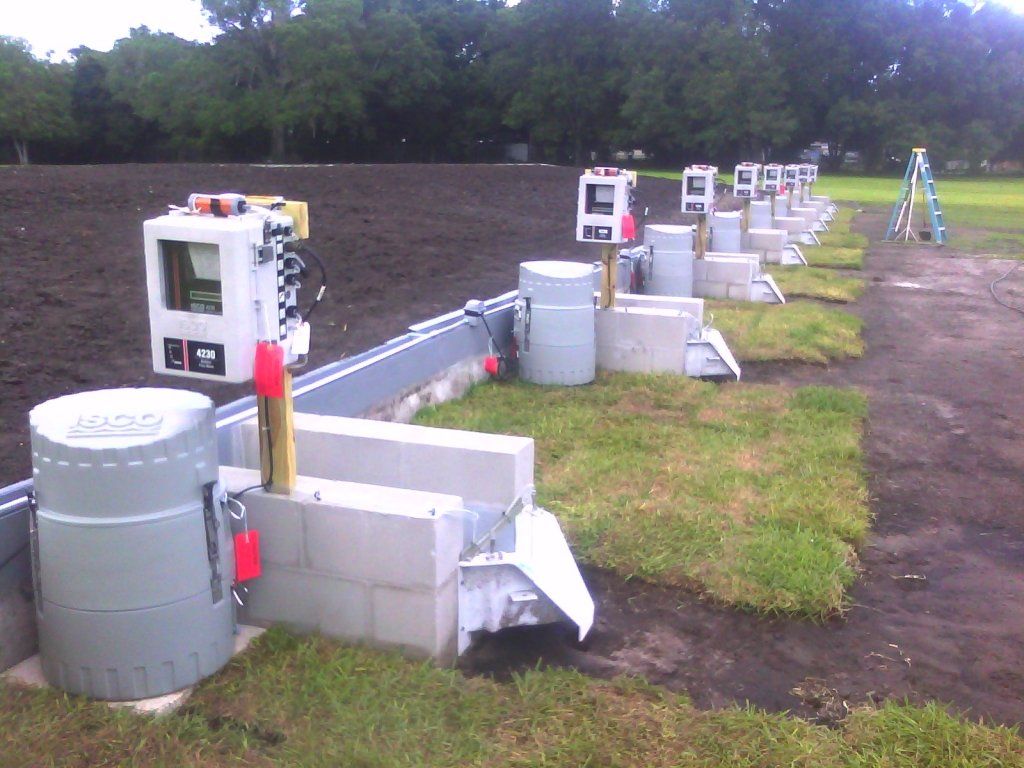

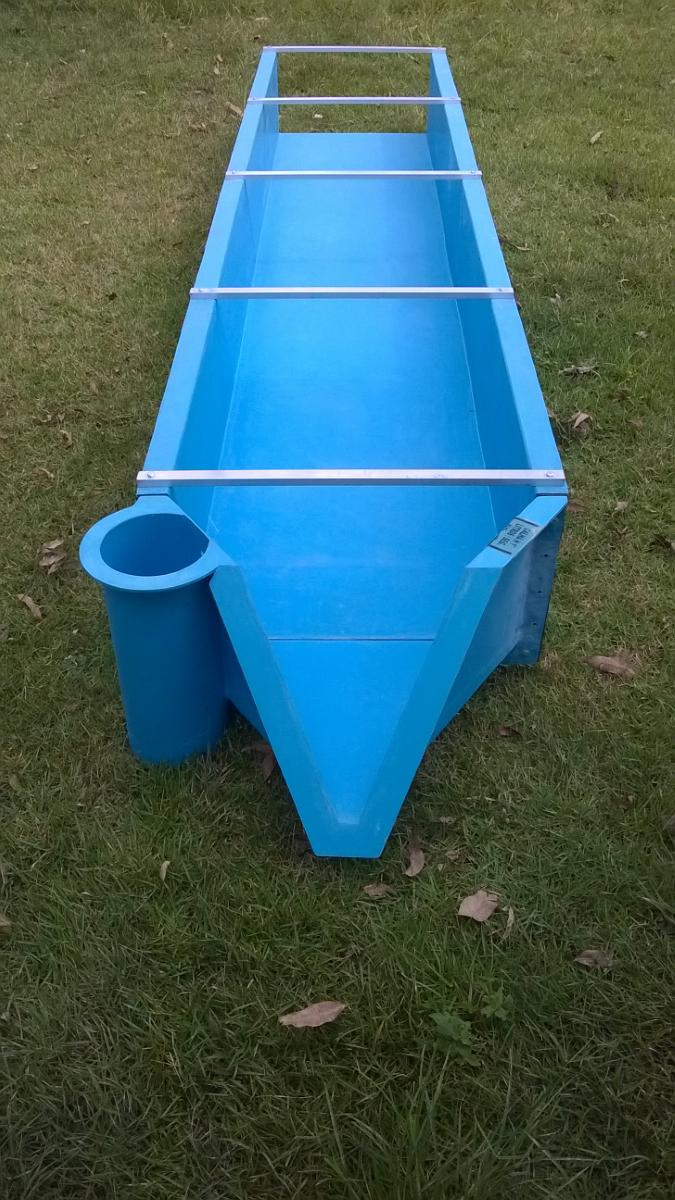

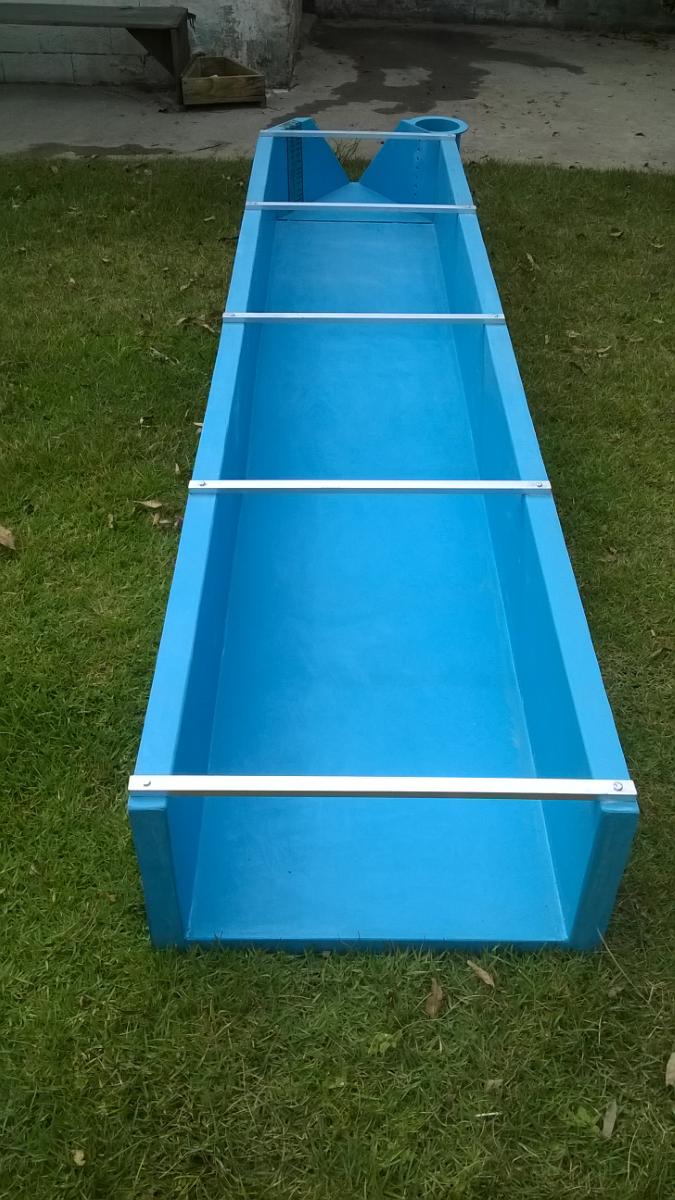

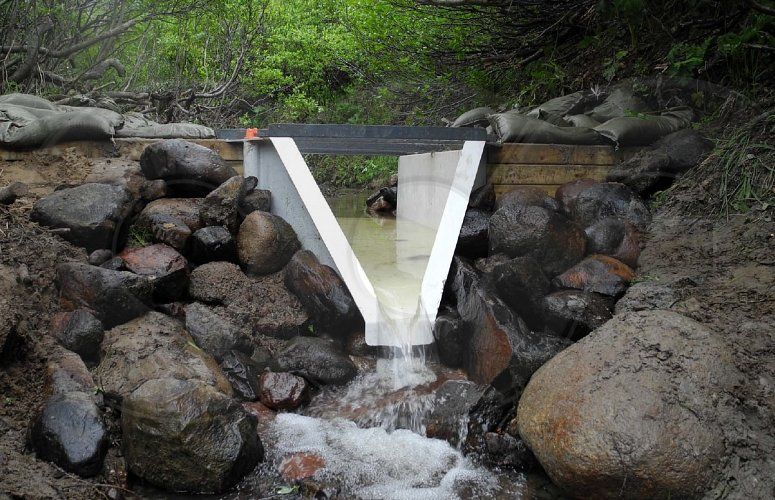

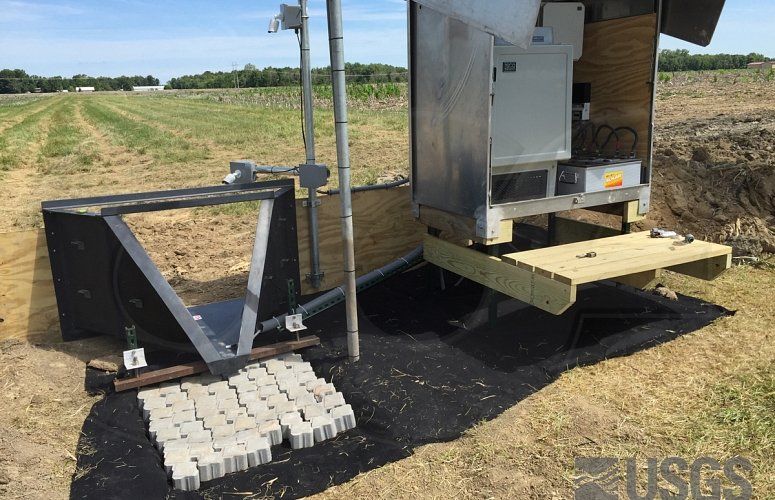

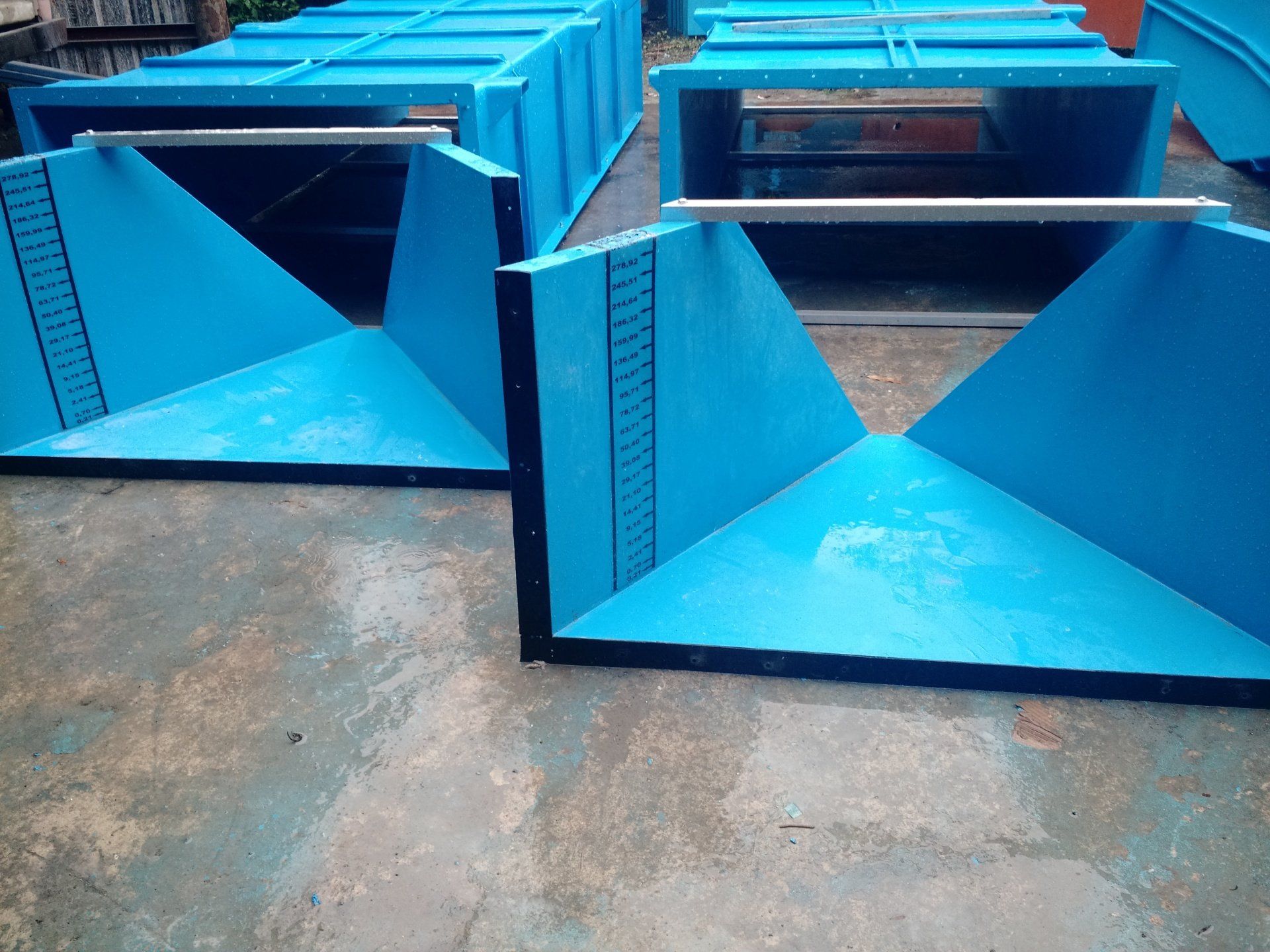

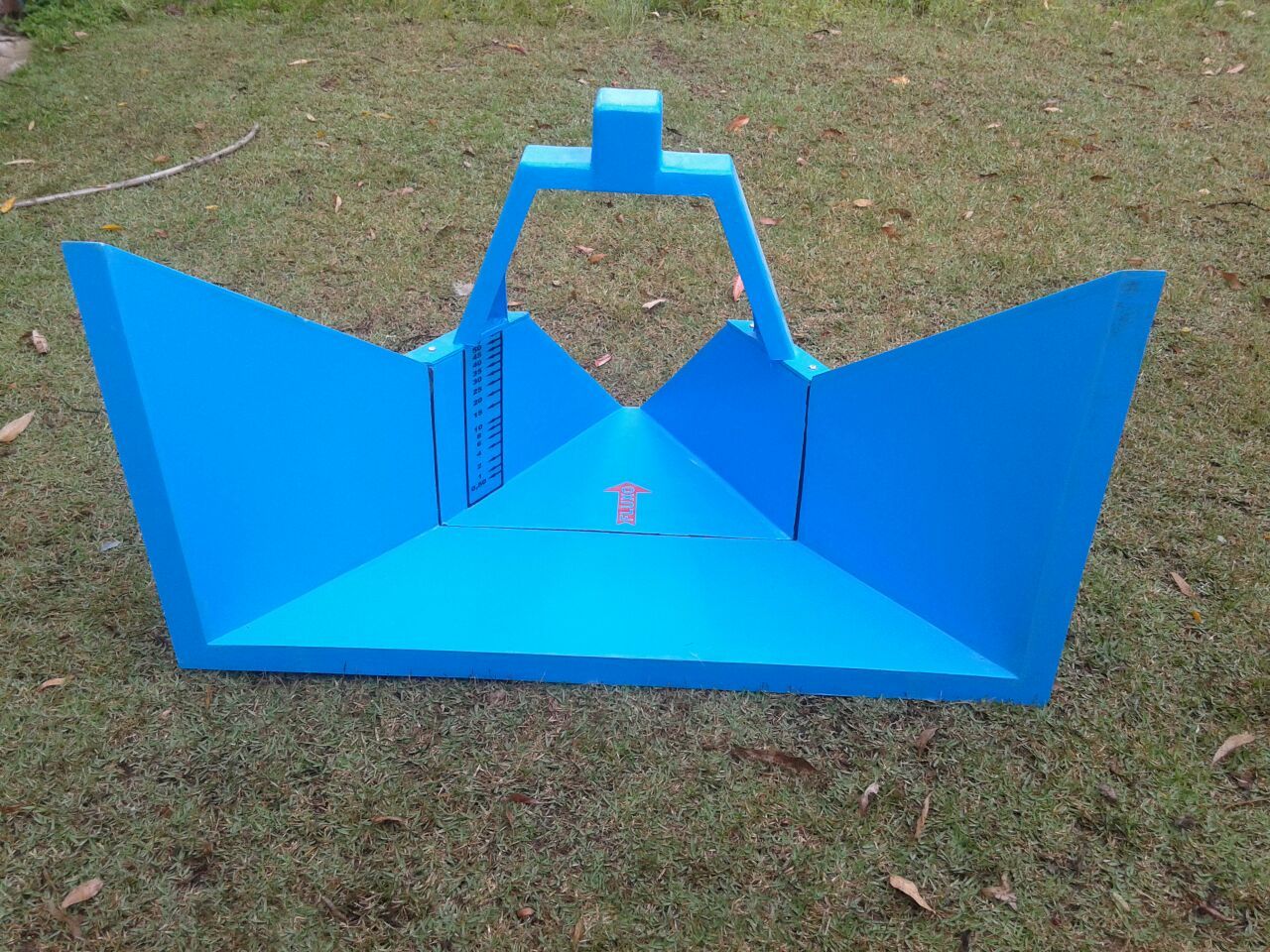

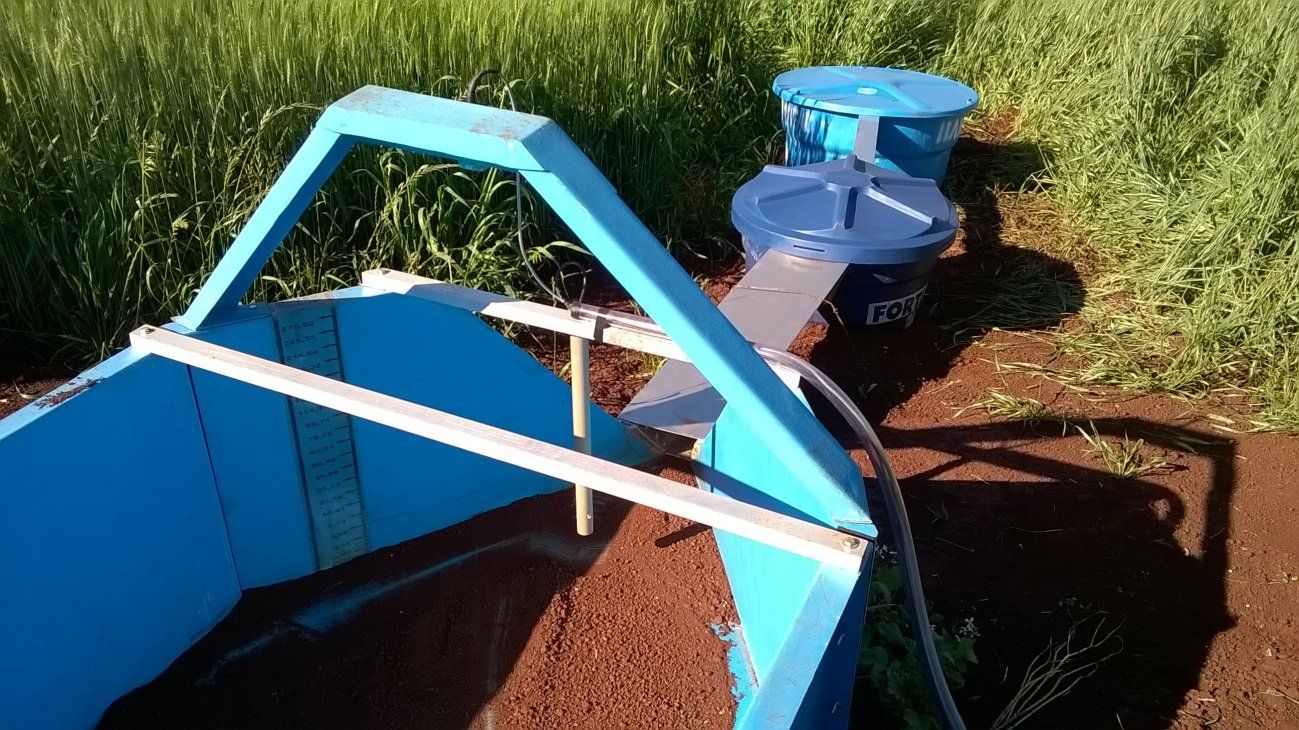

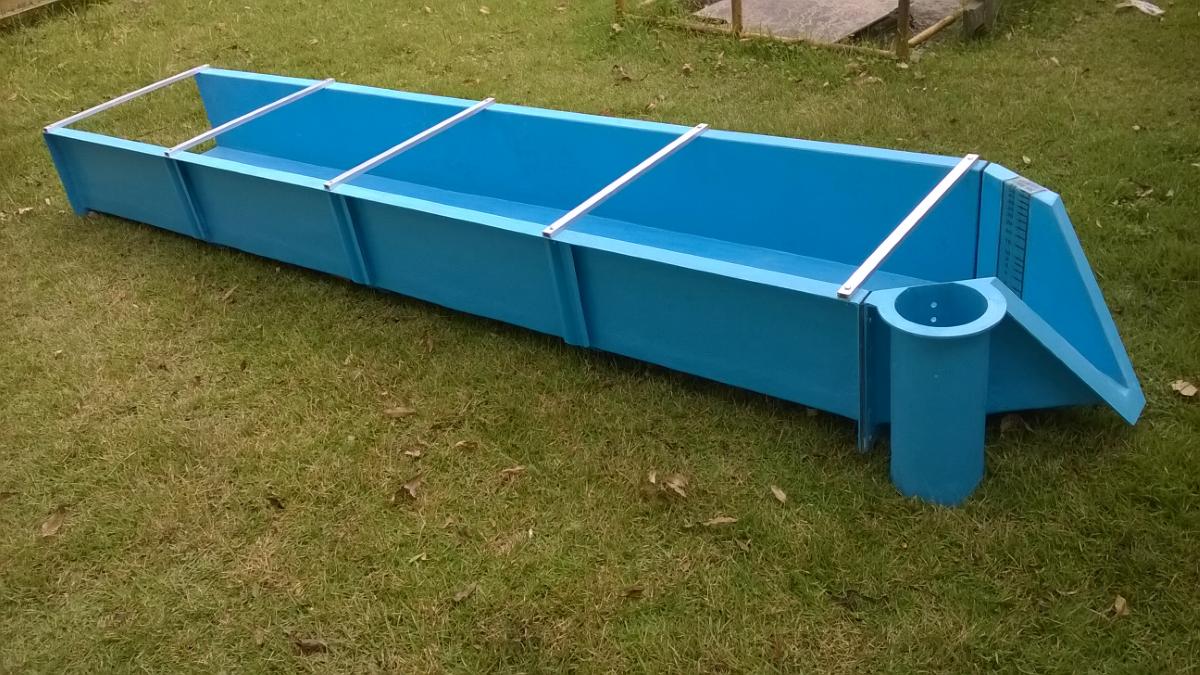

CALHA H flow meter made of PRFV (Fiberglass Reinforced Polyester) for installation in channel outlets. It has a graduated scale attached to the gutter body. We provide with and without straight section of entrance. 3 H-type classes have been developed: HS - for small flows - from 0.0045 to 22.74 l / s H - for medium flows - from 0.0113 to 2379 l / s HL - for large flows - from 0.1416 á 3285 l / s To ensure correct installation, the following points must be taken into account: There should be no curvature, dips, elbows or flow intersections immediately upstream of the trough location. The approaching flow must be smooth and evenly distributed in the entire channel, the fluid should not be turbulent, with a poorly distributed speed pattern. The channel must be centered on the flow current. The channel floor must be level. The internal dimensions of the channel are essential for its correct functioning, wooden battens when installed to avoid deformationsThe H-rail must be installed at the end point of the channel, for drainage. Optional accessories: Screw cap Straight section Ultrasonic support Flanged entrance Please contact us for more information, our technical department is available to assist in choosing the appropriate meter for each customer, analyzing the channel situation *** SANECOM EXCLUSIVITY ***
