Surface Gate

Surface and Bottom Gate

Gates

Surface or bottom gates made of fiberglass FRP or stainless steel - steering by wheel or electric
Budget

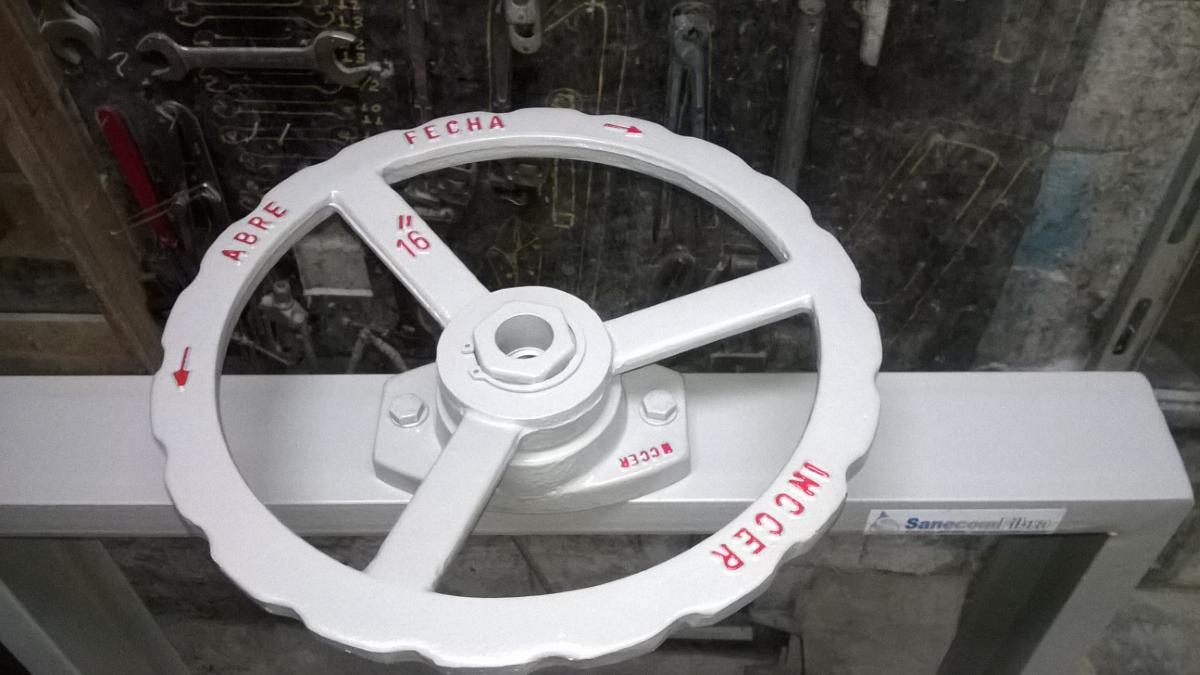

Model CSAV - Flywheel Surface Compartment - made of fiberglass - PRFV (polyester reinforced with fiberglass) or Model CFAV - Bottom Flap drive by wheel Purpose It is mainly intended for channel insulation; water intake in flocculation chambers; water entering and leaving decanters; opening and closing filter tributaries; and supply of reservoirs or tanks. Allowing partial or total opening, they are also used to regulate and divide flows in the distribution of water in decanters and aeration tanks in water or sewage treatment processes. The surface gates are manufactured in variable dimensions, according to the project, considering the process and operation conditions required by the system. Depending on the dimensions, they are manufactured with reinforcements that allow greater security in terms of strength and operation, as well as durability and low maintenance. The sealing system is made of Nitrile Rubber (NBR), developed and dimensioned with precision to guarantee the tightness of the system. OUR TECHNICAL DEPARTMENT IS AVAILABLE TO ANSWER YOUR QUESTIONS AND PRESENT THE BEST SOLUTION FOR YOUR PROJECT. General Aspects - Manufacture: Entirely made of FRP (Fiberglass Reinforced Polyester), they have a light construction, however rigid and resistant to the working conditions to which they are subjected, eliminating problems of corrosion, erosion and leakage that are presented in similar gates of metal construction. The surface gates are basically composed of: A FRAME GUIDE FRAME of the FLANGEAR TYPE on the wall (GF) or embedded in the concrete (GE) Gantry or Drive pedestal in steel astm-A36 with Epoxy Painting Bi-component Manual Activation by Steering Wheel and Threaded Rod in Stainless Steel, Bronze Nut mounted on bearing with double axial bearing. Sealing in Nitrile Rubber or EPDM. Dimensions according to project. IT IS USED IN SYSTEMS OF: Sanitation; Chemical industries; Mining industries; Petroleum Industries; Canned food industries; Fish industries; Cooling systems. * We do not manufacture flood gates, only for environmental sanitation * We recommend the installation in the flow direction. OPTIONAL ALSO IN STAINLESS STEEL WITH STEERING WHEEL OR ELECTRIC. * We do not work with cast iron gates and double flow gates.
